Machine Photo

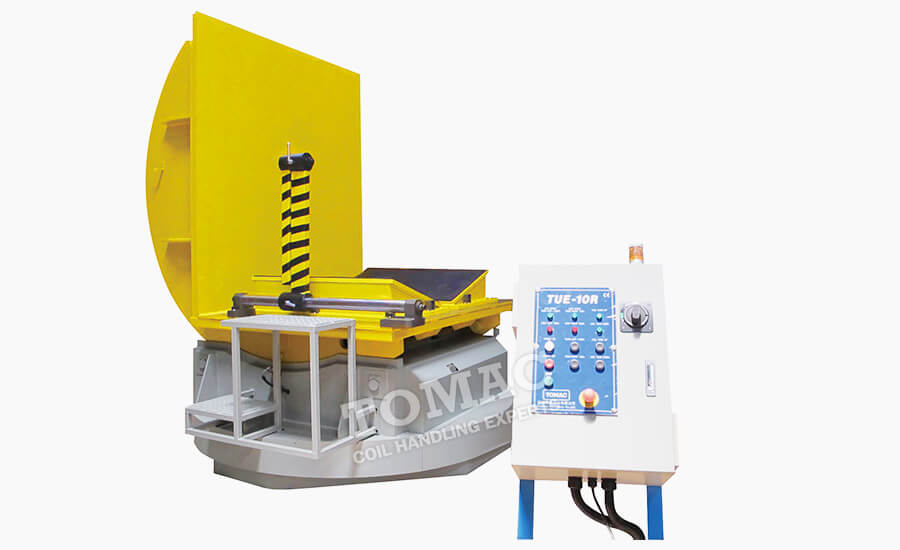

  • Press Feeding and Coil Handling System Accessories TUE Series

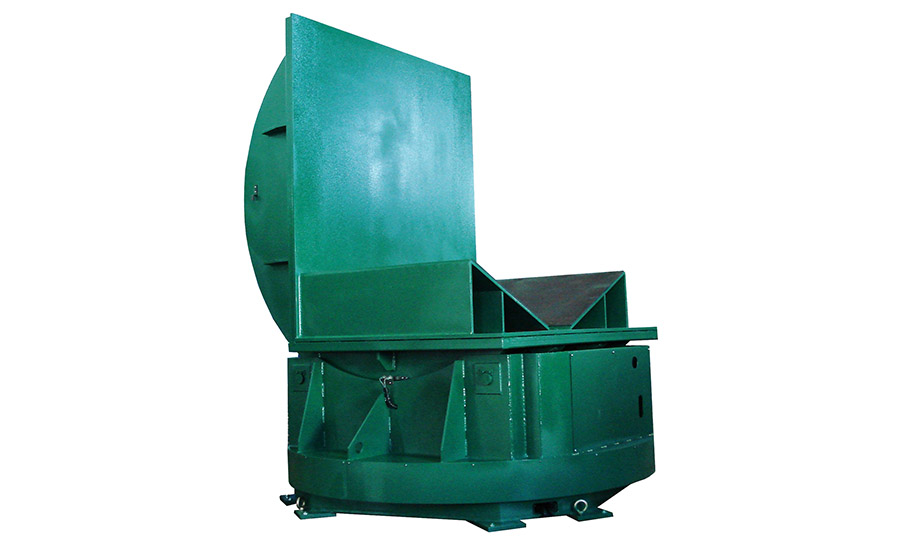

  • Press Feeding and Coil Handling System Accessories TUE Series

Specifications & Information

Specification

Series Coil Weight
( kg )
Tilting Degree Tiling Method Max. O.D.
 (mm)
Rotation Degree
(option)
Read More
Specification
TUE-5 Max. 5000 90º By Hydraulic Motor 1500 180 º
TUE-10 Max.10000 90º By Hydraulic Motor 1500 180 º

Information

  • 01

    Features

    • The up-ender provides an easy and efficient way to tilt the metal coils, molds, dies and other heavy and bulky loads. The up-ender rotates steel, aluminum & other non-ferrous coils and other loads through 90 degrees. It is used in a variety of productions and maintenance applications.
    • Capacities are available up to 10 tons along with a variety of options.
  • 02

    Rotation Method

    • By Hydraulic Motor
