Machine Photo

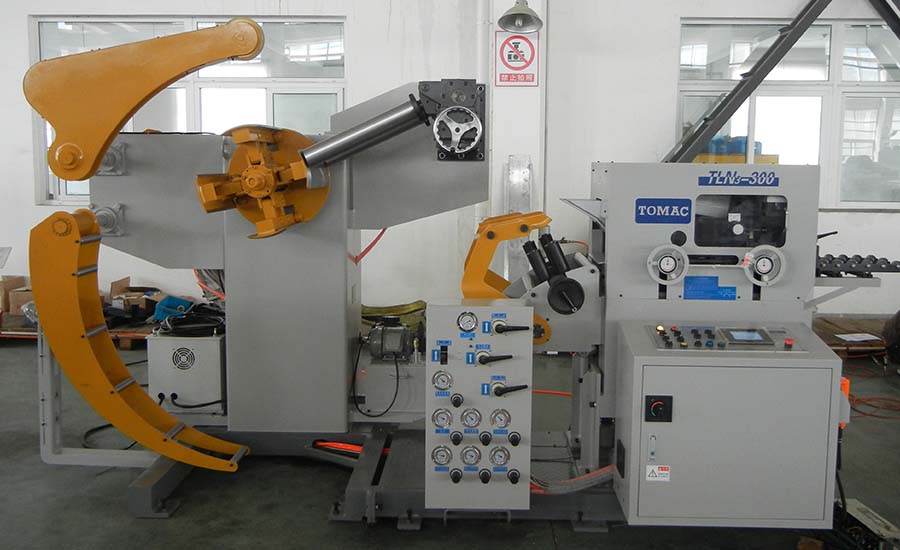

  • 3 In 1 NC Servo Straightener Feeder w / Uncoiler TLN3 Series

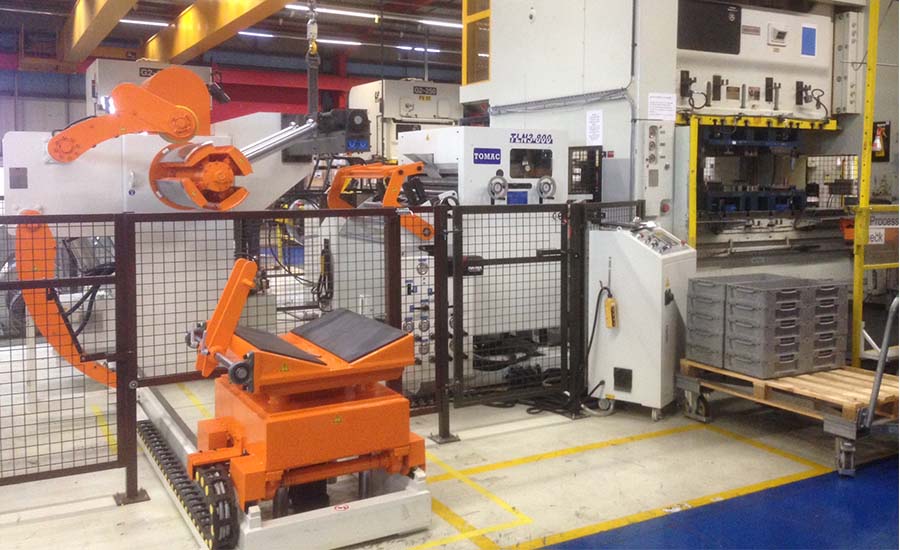

  • 3 In 1 NC Servo Straightener Feeder w / Uncoiler TLN3 Series
  • 3 In 1 NC Servo Straightener Feeder w / Uncoiler TLN3 Series

Specifications & Information

Specification

Series Width of Material
(mm)
Thickness of Material
(mm)
Max. Coil Weight
(kg)
Max. Coil I.D.
(mm)
Max. Coil O.D.
(mm)
Read More
Specification
TLN3-300 75 ~ 300 0.5 ~ 4.5 3,000 508 1,200
TLN3-400 75 ~ 400 0.5 ~ 4.5 3,000 508 1,200
TLN3-500 75 ~ 500 0.5 ~ 4.5 3,000 508 1,200
TLN3-600 75 ~ 600 0.5 ~ 4.5 3,000 508 1,200
TLN3-700 75 ~ 700 0.5 ~ 4.5 3,000 508 1,200
TLN3-800 75 ~ 800 0.5 ~ 4.5 3,000 508 1,200

Information

  • 01

    Standard Accessories

    1. Electric eye loop control system
    2. Feed and straightener rolls hard chrome plated
    3. Outgoing catenary to assist and support the material
    4. Hold down arm device
    5. Feeding line easily adjusted by advance worm gear screw jacks device
    6. Uncoiler with inverter control
    7. Reference indicator adjuster
    8. Eccentric Roller (Upper)-easy to set up the up curve or down curve feeding exit direction
    9. Hand-set coil width guide at outlet side
    10. Hand-wheel-adjusted coil width guides at straightener inlet side
    11. Threading table device
    12. Coil tip de-bender
    13. Uncoiler with air disc brake
    14. Roller type Coil keeper
    15. Servo control system, PLC and HMI
  • 02

    Option

    1. TOMAC Coil car
    2. Motorized pass line height adjustment
    3. Measure roller
    4. Motorized coil keepers adjustment
